Specifications
Weight: 58 lb.
Dimension: 13”W x 15”D x 38”H
Cold tank volume 1 gal
Hot tank volume .5 gal 1.5 gal/hr 37-50ºF
Heating Rate: 1.3 gal/hr 180 ºF Voltage: 115 VAC Power Required: 600w max
Filter System
Standard Filter 1000F
Stage 1: 5 micron Sediment
Stage 2: 10 micron Activated Carbon
Reverse Osmosis Filter 1000R
Above 2 stages plus
Stage 3: 50-GPD ROMembrane
Fully assembled – connection hardware included

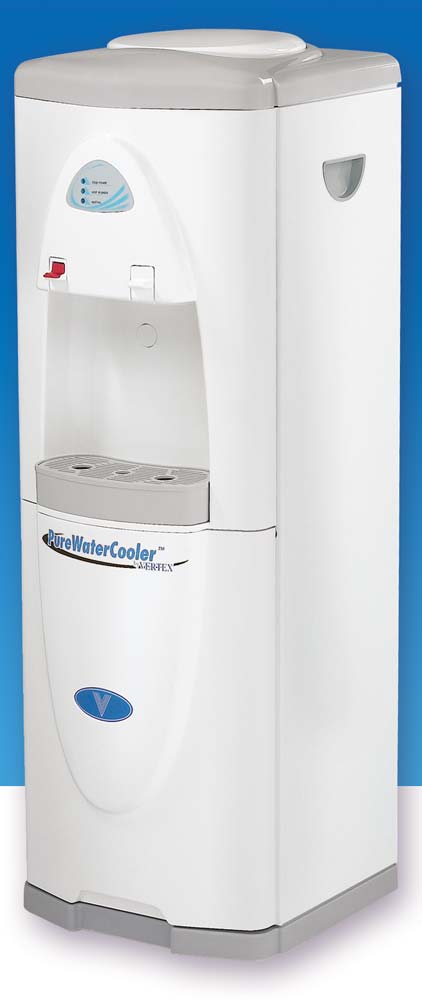

Vertex PWC-1000
Low Cost Hot & Cold Water Dispenser
A compact hot and cold water dispenser serves up to 40 people in offices where economy and quality are needed. Eliminates the hassle of lifting and storing heavy 5 gallon containers.
• Two temperature system
• Cold: 37-50º F, Adjustable • Hot: 180º F, Autocontrol
• LED indicator for Hot and Cold water on the front panel
• Individual on/off control switches for cold or hot water on rear panel
• Sealed compressor cooling system with thermostat
• Type 304 Stainless steel hot and cold tanks
• Convenient, enclosed, no-drip dispensing faucets
• Child safety lock for hot water faucet
• Built-in filtration system is front door accessible for replacement
• Choose Reverse Osmosis or standard Dual-Cartridge filtration
• Enclosed no-drip faucets eliminate hand contact for better hygiene
• Steel subframe and side panels withstand years of use
• ABS front and top covers have a high impact appliance finish
• 1 year limited warranty – 3 year compressor warrant
UV sterilizer and ozone sanitizer options available.
| Ordering Information | Part No. | |
|---|---|---|
| 2-Temp Model - 50 GPD Reverse Osmosis | PWC-1000R | |
| 2-Temp Model – Standard Filtration | PWC-1000F | |
| 2-Temp Model – No Filtration | PWC-1000 | |
| Executive Gray Cabinet | add /EG | |
| 2-temp Model w/ UV Sterilizer | add /UV | |
| 2-temp Model w/ Ozone Sanitizer | add /OZ | |
| 2-temp Model w/ ProTekk Mechanical Leak Detector | add /ldm | |
| Replacement Filters | Sediment | IFA-4035 |
| GAC Carbon | IFA-4034 | |
| RO Membrane, 50 GPD | MA-4203 | |
For Sales, Service or Parts, contact
800-627-2146
Dealer Downloads
Conforms to UL std 399
Meets Energy Star requirements
ADA Compliant
