Specifications

Weight: 48 lb.
Dimension: 16”W x 13”D x 20”H
Cold tank volume .5 gal
Hot tank volume .5 gal
Room temp. tank volume 2.2 gal
1.5 gal/hr 37-50ºF
Heating Rate: 1.5 gal/hr 180 ºF
Voltage: 115 VAC
Power Required: 600w max


Filter System

Standard Filter 600FP

Stage 1:
5 micron Sediment

Stage 2:
10 micron Activated Carbon

Reverse Osmosis Filter 600FPR
Above 2 stages plus

Stage 3:
50-GPD RO Membrane

Fully assembled
– connection hardware included

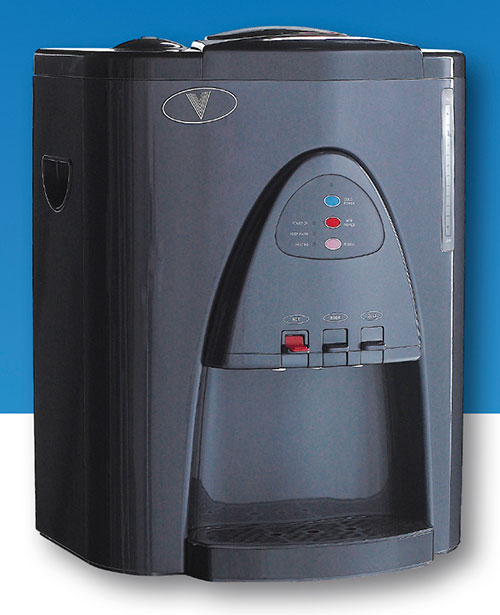

Vertex PWC-600 (discontinued)

3-Temp Countertop water dispenser

A deluxe 3-temperature, hot, room and cold bottle-less water dispenser that has the largest storage capacity of our countertop coolers at 3.2 gallons. Uses the existing water source to make a continuous supply of clean, great tasting water for offices of up to 50 people.

    Hot, Room and Cold Temperatures from a single source

    Separate hot/cold power switch on front panel

    Reboil raises water 15° F over normal hot water temp.

    Automatic heating control at 180 °F with over-temperature shut-off

    Sealed compressor cooling with adjustable thermostat, 37-50°F

    Stainless steel hot and cold water tanks

    Mechanical float valve shut-off

    Water level indicator built-in

    Safety lock for hot water faucet

•    Enclosed no-drip faucets eliminate hand contact for better hygiene

•    ABS front and top covers have a high impact appliance finish

Optional Add-On Filter Pack

    Choose Reverse Osmosis or standard Dual-Cartridge filtration

    Attaches to back of Cooler, adds only 4.5” to cooler depth


Ordering InformationPart No.
3-Temp Hot and Cold DispenserPWC-600
Add-on filter pack - Standard Filtrationadd /FP
Add-on filter pack - 50 GPD RO membraneadd /FPR
Executive Gray Cabinetadd /EG
Replacement FiltersSedimentIFA-4035
GAC CarbonIFA-4034
RO Membrane, 50 GPDMA-4203
For Sales, Service or Parts, contact
800-627-2146

Dealer Downloads

Sales Flyer

Owners Manual

Service Manual

Parts List & Drawing

Conforms to UL std 399

Meets Energy Star requirements

ADA Compliant
