Specifications
Weight: 45 lb.
Dimension: 13”W x 15”D x 19.5”H
Cold tank volume 1 gal
Hot tank volume .5 gal
Cooling Rate 1.5 gal/hr 37-50ºF
Heating Rate: 1.3 gal/hr 180 ºF
Voltage: 115 VAC
Power Required: 600w max
Filter System
Standard Filter 500FP
Stage 1:
5 micron Sediment
Stage 2:
10 micron Activated Carbon
Reverse Osmosis Filter 500FPR
Above 2 stages plus
Stage 3:
50-GPD RO Membrane
Fully assembled
– connection hardware included

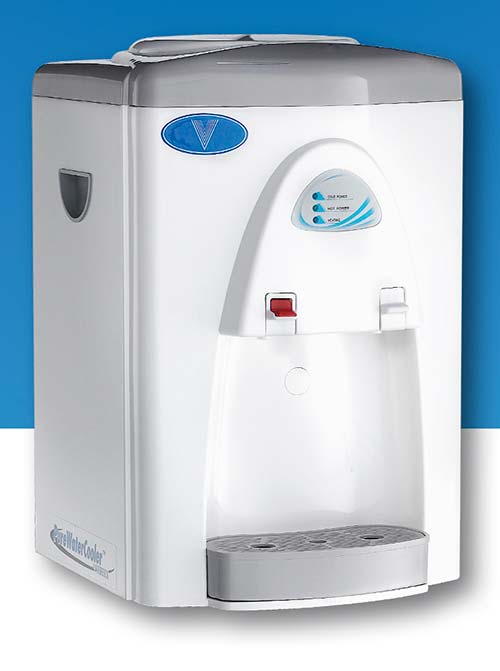

Vertex PWC-500
Hot & Cold water Dispenser
The Vertex PWC-500 uses the existing water source to make a continuous supply of clean, great tasting water for offices of up to 40 people.
• Two temperature system
• Cold: 37-50º F, Adjustable • Hot: 180º F, Autocontrol
• LED indicator for hot and cold water on the front panel
• Individual on/off switches for hot or cold function on rear panel
• Completely sealed stainless steel cold reservoir and hot tank
• Convenient, enclosed, no-drip dispensing faucets
• Type 304 stainless steel hot and cold water tanks
• Enclosed no-drip faucets eliminate hand contact for better hygiene
• Safety lock for hot water faucet
• ABS front and top covers have a high impact appliance finish
Optional Add-On Filter Pack
• Choose Reverse Osmosis or standard Dual-Cartridge filtration
• Attaches to back of Cooler, adds only 4.5” to cooler depth
| Ordering Information | Part No. | |
|---|---|---|
| 2-Temp Hot and Cold Dispenser | PWC-500 | |
| Add-on filter pack - Standard Filtration | add /FP | |
| Add-on filter pack - 50 GPD RO membrane | add /FPR | |
| Executive Gray Cabinet | add /EG | |
| Replacement Filters | Sediment | IFA-4035 |
| GAC Carbon | IFA-4034 | |
| RO Membrane, 50 GPD | MA-4203 | |
For Sales, Service or Parts, contact
800-627-2146
Dealer Downloads
Conforms to UL std 399
Meets Energy Star requirements
ADA Compliant
