Specifications
Shipping Weight: 50 lb.
Dimension: 13”W x 15”D x 41.5”H
Hot tank volume .5 gal
Cooling Rate: 2.1 gal/hr 37-50ºF
Heating Rate: 1.3 gal/hr 180 ºF
Voltage: 115 VAC
Power Required: 600w max
Filter System
Standard Filter 9100F
Stage 1:
5 micron Sediment
Stage 2:
10 micron Activated Carbon
Reverse Osmosis Filter 9100R
Above 2 stages plus
Stage 3:
50-GPD RO Membrane
Fully assembled
– connection hardware included

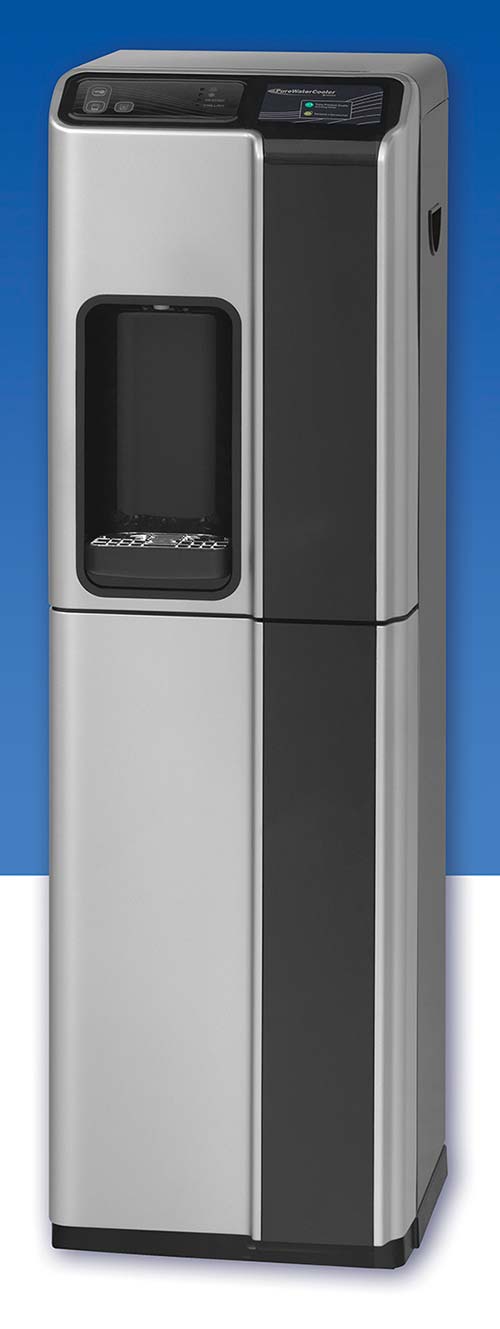

Vertex PureChill-9100
The Hygienic Solution
New closed system system keeps environmental contaminants out, so there is no need for costly in-tank sanitization. Water is chilled on demand when it passes through the cooling chamber to the faucet.
• No need for expensive UV and Ozone in tank sanitizers
• Integrated Filter Monitor ensures freshly filtered water
• Auto Safety-Shut-Off Valve provides peace of mind
• Two temperature system
• Cold: 37-50º F, Adjustable • Hot: 180º F, Autocontrol
• LED indicator for Hot and Cold water on the front panel
• Tall fill opening allows larger cups, mugs or reusable bottles
• Hygienic control touch pad with no-touch dispensing faucet
• Easy to clean control panel
• Individual on/off control switches for cold and hot water on rear panel
• Built-in filtration system is easily accessed for replacement
• Available with Reverse Osmosis filtration system
• Award winning design
• 1 year limited warranty – 3 year compressor warrant
| Ordering Information | Part No. | |
|---|---|---|
| 2-Temp Model - 50 GPD Reverse Osmosis | PureChill-9100R | |
| 2-Temp Model – Standard Filtration | PureChill-9100F | |
| 2-Temp Model – No Filtration | PureChill-9100 | |
| Replacement Filters | Sediment | TF-4113 |
| Carbon | TF-4115 | |
| RO Membrane, 50 GPD | MA-4203 | |
For Sales, Service or Parts, contact
800-627-2146
