Specifications

Weight: 66 lb.
Dimension: 16”W x 16”D x 42”H
Cold tank volume 1 gal
Hot tank volume .8 gal
Room Temp tank volume 2.2 gal
Cooling Rate 1.5 gal/hr 37-50ºF
Heating Rate: 1.5 gal/hr 180 ºF
Voltage: 115 VAC
Power Required: 600w max


Filter System

Standard Filter 3500F

Stage 1:
5 micron Sediment

Stage 2:
10 micron Activated Carbon

Reverse Osmosis Filter 3500R
Above 2 stages plus

Stage 3:
75-GPD RO Membrane

Stage 4:
GAC polishing filter

Fully assembled
– connection hardware included

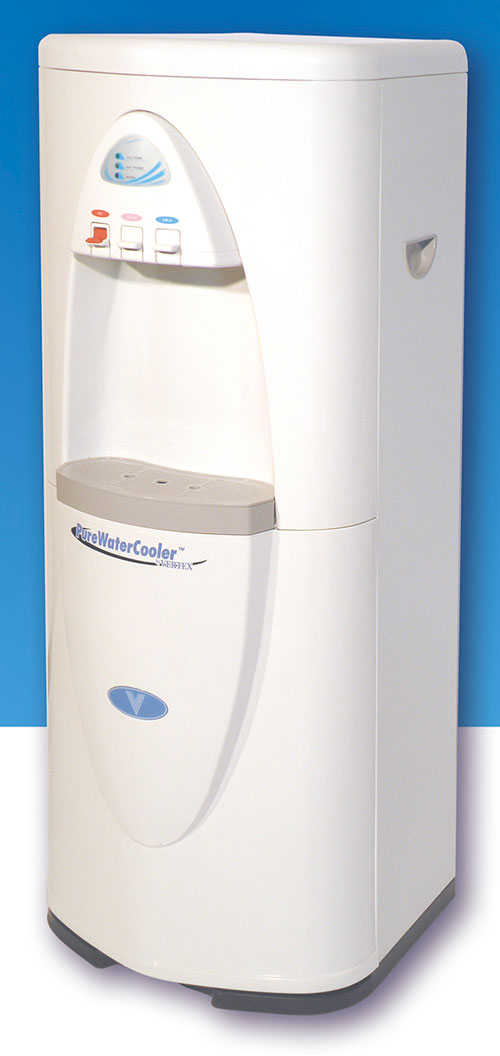

Vertex PWC-3500

High Capacity 3-Temp Water Dispenser

Deluxe 3-temperature, hot, room and cold bottle-less water cooler with large 4-gallon water storage capacity for offices or factories of up to 60 people. Improved features include a taller spigot height for easier access, a larger dispensing area for large sports bottles and a new flat top for placing coffee brewers or storing cups and utensils.

    Hot, Room and Cold Temperatures from a single source

    High Capacity 75 GPD RO membrane with 4.0 gallon total storage

    Taller spigot height and larger opening for easy refills

    Flat top supports coffee brewers or breakroom supplies

    Automatic heating control at 180 °F with over-temperature shut-off

    Sealed compressor cooling with adjustable thermostat, 37-50°F

    Stainless steel hot and cold water tanks

    Mechanical float valve shut-off

    Type 304 stainless steel hot and cold water tanks

    Built-in filtration system is easily accessed for replacement

    Choose Reverse Osmosis or standard Dual-Cartridge filtration

    Safety lock for hot water faucet

    Enclosed no-drip faucets eliminate hand contact for better hygiene

    ABS front and top covers have a high impact appliance finish

    1 year limited warranty – 3 year compressor warranty



UV sterilizer and ozone sanitizer options available.



Ordering InformationPart No.
3-Temp Model - 50 GPD Reverse OsmosisPWC-3500R
3-Temp Model – Standard FiltrationPWC-3500F
3-Temp Model – No FiltrationPWC-3500
Executive Gray Cabinetadd /EG
2-temp Model w/ UV Sterilizeradd /UV
2-temp Model w/ Ozone Sanitizeradd /OZ
2-temp Model w/ ProTekk Mechanical Leak Detectoradd /ldm
Replacement FiltersSedimentIFA-4035
GAC CarbonIFA-4034
Post FilterIFA-4064
RO Membrane, 75 GPDMA-4206
For Sales, Service or Parts, contact
800-627-2146

Dealer Downloads

Sales Flyer

Owners Manual

Parts List & Drawing

Conforms to UL std 399

Meets Energy Star requirements

ADA Compliant



Home PWC-3500
